MLC-LL

分类:直流支撑
金属化薄膜滤波/储能电容器
特点/ Feature
● 用于直流滤波电路中,可替代电解电容;
● 等效串联电阻小,能承受较大纹波电流;
● 自感小,温升低,寿命长;
● 安装简单方便。

● Widely used in DC Filter circuit to replace electrolytic Capacitors.
● Low ESR and support high ripple current.
● Low stray inductance, lowtemperature rising and long lifetime.
● Simple installation
  • 案例详情
  • 更多内容

应用场合/ Applications

● SVG动态无功补偿设备

● 太阳能发电,风力发电用逆变器上

● 变频器,UPS,电焊机,电源机车,电动汽车和混合动力车


● SVG equipment

● Solar&Wind Power inverters

● Converters, power supply for Train ,Electronic vehicle and hybrid train.


典型线路图/ Typical circuit

管家婆三肖期期中特


外形图及参考尺寸/Outline drawing

管家婆三肖期期中特


管家婆三肖期期中特

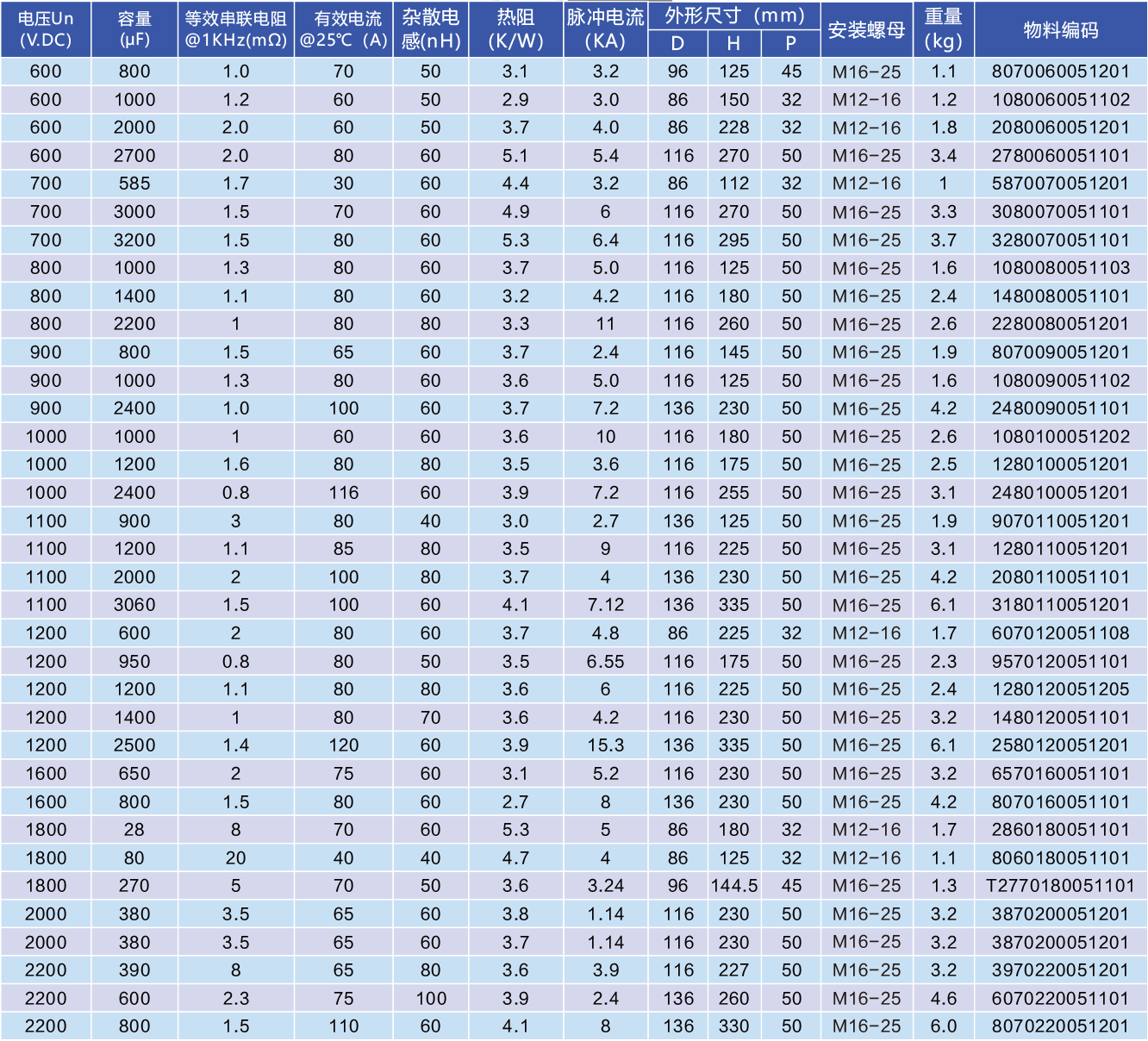

备注:详细规格清单及参数查询公司官方网站,或来电、邮件咨询。

Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries


性能指标/ Technical data

引用标准/Reference to StandardGB/T17702 -2013,IEC61071-2007
结构形式/Structure

金属化自愈式直流滤波电容,产品为干式

Metallized self-healing DC-Link capacitor, Dry type

封装方式/Encapsulation

铝原色,环氧封装

Aluminum case, Epoxy resin

容量范围/Capacitance Range100~2600μF
容量允许偏差/Capacitance Tolerance±5% (J),±10% (K)
电压范围/Voltage Range600V.DC~2200V.DC
极壳耐压/Utc

2Ui+1000V.AC/10S (50Hz) (≥2000V.AC)《或根据客户需求》

 or (Refer to customer’s requirement)

极间耐压/Utt1.5Un(DC)/10S
损耗角/Dissipation Factor (tgδ)tgδ≤0.003(at 10kHz)
绝缘电阻/Insulation Resistance

Ri×C≥5000s

气候类别/Climate Category40/85/21
工作温度范围/Working Temperature-40℃~70℃ (最大85℃)
储存温度范围/Storage Tempearture-40℃~85℃
使用海拔/Altitude<2000m
最大电极扭矩/Max ElectrodeTorqueM6:3N.m
最大安装扭矩/Max Install Torque10N.m
预期寿命/Expected life time100000h
阻燃性/FlammabilityUL94v-0
失效率/Failure Rate30FIT

备注:如果海拔使用高度超过了2000m,应该考虑海拔对流冷却和外绝缘的影响。

Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m
