MLC-SB

分类:吸收电容
金属化薄膜无感吸收保护电容器
特点/ Feature
● 体积小,安装方便,搭配灵活
● Low volume, easy installation
and flexible combination
  • 案例详情
  • 更多内容

应用场合/ Applications

● 广泛用于UPS、逆变器、电焊机等工业电 力电子设备的直流母线高频纹波吸收。

● Widely used in UPS, converter, welding machine to absorb DC-BUS high frequency ripple current.


典型线路图/ Typical circuit

管家婆三肖期期中特

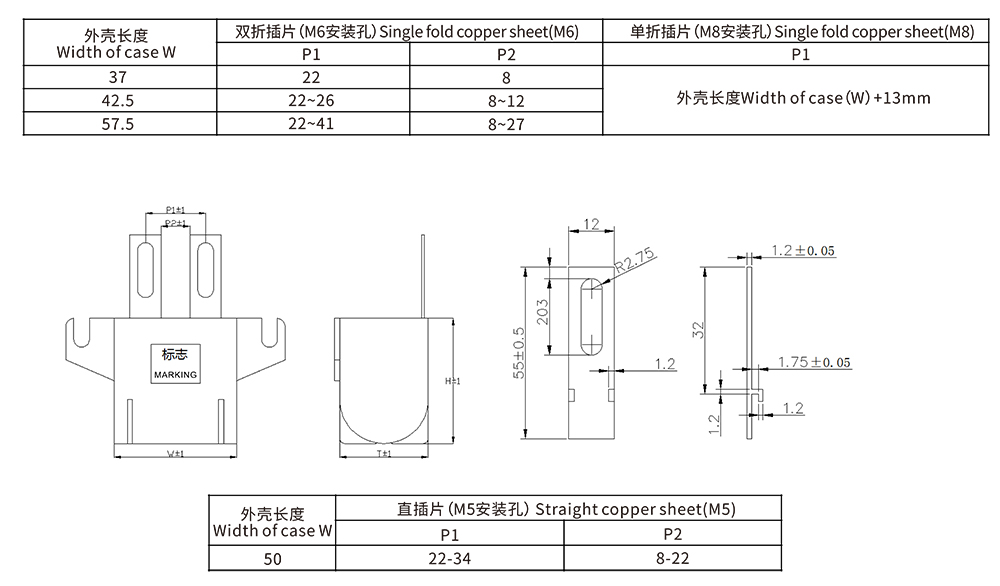

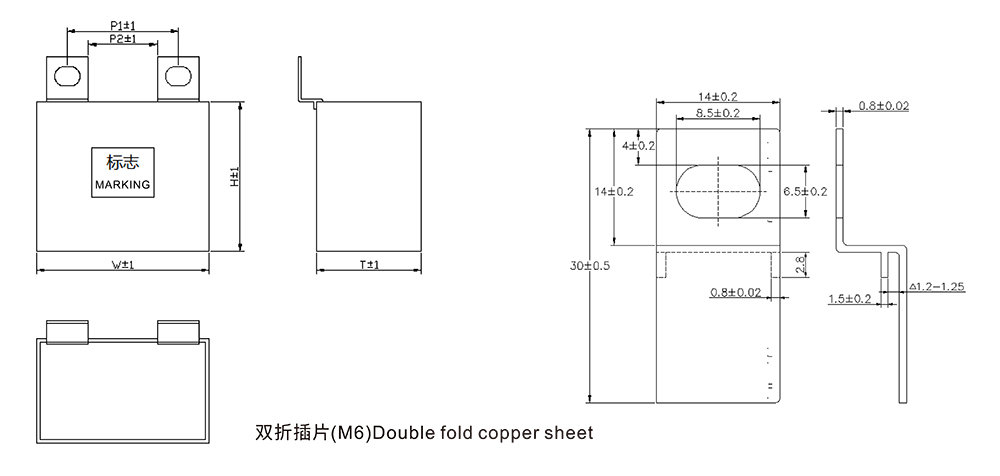

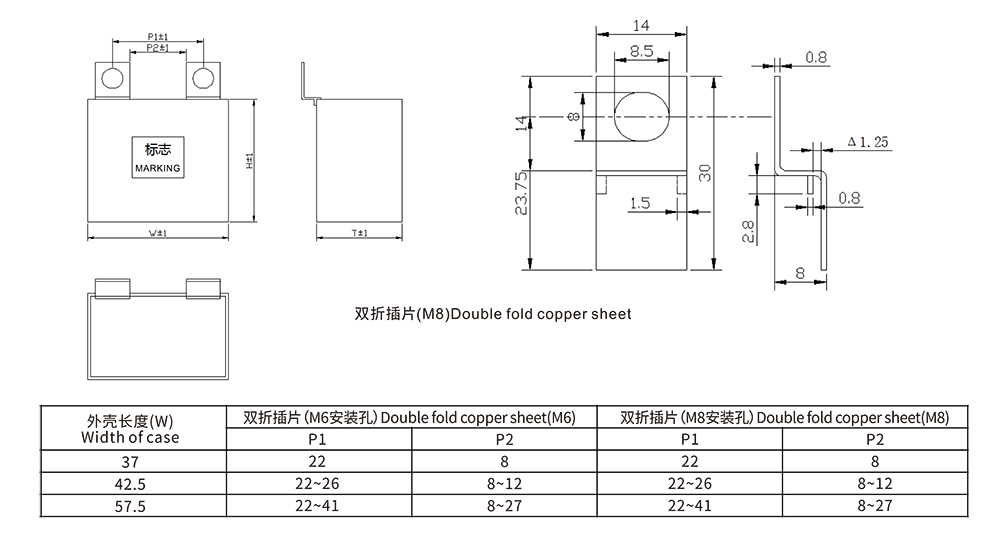

外形图及参考尺寸/Outline drawing

管家婆三肖期期中特

管家婆三肖期期中特

备注:详细规格清单及参数查询公司官方网站,或来电、邮件咨询。

Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries


性能指标/ Technical data

引用标准/Reference to StandardGB/T17702
结构形式/Structure水冷式 Water cooling type
封装方式/Encapsulation银色铝外壳,白色环氧  Sillver colour, Aluminum case, White epoxy resin
容量范围/Capacitance Range0.06~0.6μF
容量允许偏差/Capacitance Tolerance±5% (J),±10% (K)
电压范围/Voltage Range300V.AC~4000V.AC
极间耐压/Utt1.5Un(DC)/10S
损耗角/Dissipation Factor (tgδ)tgδ≤0.0006 (at 1kHz)
绝缘电阻/Insulation ResistanceRi≥15000MΩ (at 20℃ 100V.DC 60s)
气候类别/Climate Category40/85/21
工作温度范围/Working Temperature-40℃~85℃
储存温度范围/Storage Tempearture-40℃~85℃
使用海拔/Altitude<2000m
最大电极扭矩/Max ElectrodeTorqueM6:3N.m 参照IEC61881
预期寿命/Expected life time100000h
阻燃性/FlammabilityUL94v-0
失效率/Failure Rate30FIT

备注:如果海拔使用高度超过了2000m,应该考虑海拔对流冷却和外绝缘的影响。

Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.
